Operation Microscope

Quick Details
Place of Origin: Shandong, China (Mainland)
Brand Name: HIPROVE
Model Number: XTY-180
Theory: Video Microscope
Drawtube: Binocular
Observation angle: 0-180degree
Total Magnification: 4.8X-16X
Magnification of observation: 8X
Focal length of objective: F=200mm 300mm 400mm
Magnification changer: 3-step: 0.6X, 1X, 1.6X.
Fine focusing distance: 10mm
Illumination: Coaxial illumination, cold light source fiber-optic cable
Lamp: LED
Filter: Build-in green and yellow filter.
Accessories: With 2-part arm and floor stand.

Main Features
Magnification of binocular: 8X

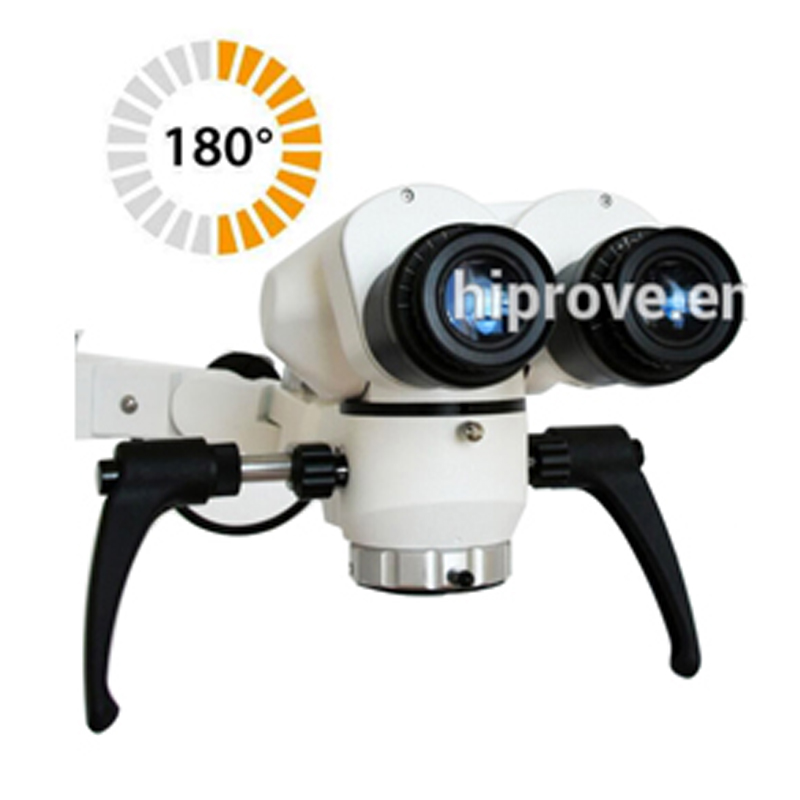

Binocular: 0-180° inclinable
Magnification of eyepiece: 12.5X
Interpupillary distance: 50mm-80mm
Valuable price!!!

Product Application
XTY-180 Operation Microscope using LED light source for coaxial illumination, with 0-180° inclinable binocular and 3-step magnification changer, has different working distance and magnification. It is featured for flexible handling and easy operation. It is sued for micro-operation in dental especially, and can be used for micros-operation in ophthalmology, ear-nose-throat, gynecology and surgery.

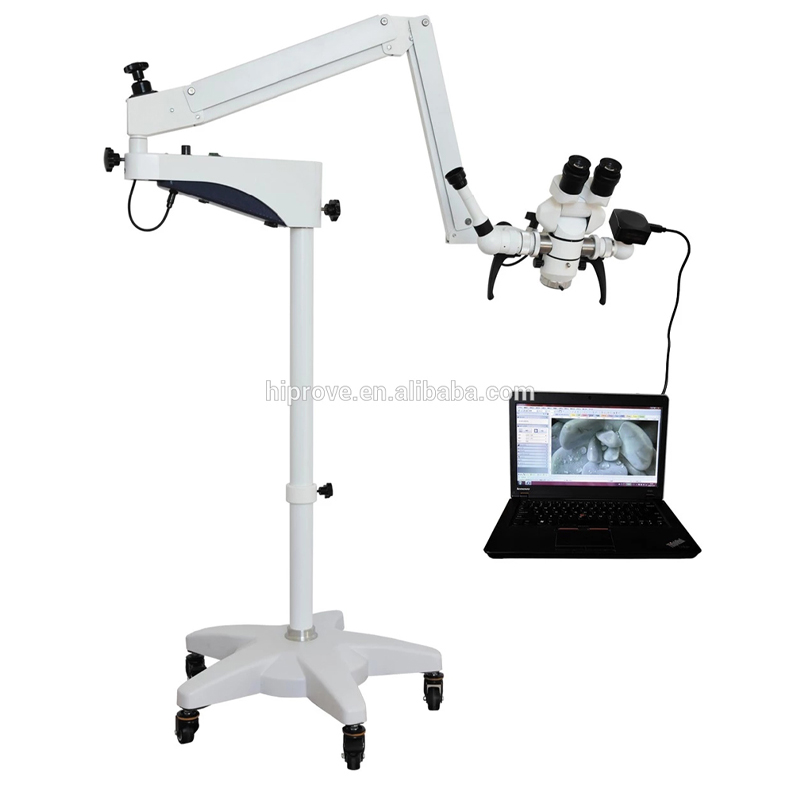

XTY-180 Operation Microscope:
Magnification of binocular: 8X
Binocular: 0-180° inclinable
Magnification of eyepiece: 12.5X
Interpupillary distance: 50mm-80mm
Diopter: ±7D
Focal length of objective: F=200mm and F=250mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total magnification: 4.8X, 8X, 12.8X, 6X, 10X, 16X
Linear field: 50mm, 30mm, 19mm, 40mm, 24mm, 15mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx
Filter: Build-in green and yellow filters
Balancing arm: 2-part arm with universal joints, counterweight adjustable and can be locked
Floor stand: 2-part column fitted on the five-star base with casters
Power supply: AC100V-AC240V

Optional accessories: Beamsplitter, Video camera adapter, Demonstrator, 1080P Camera, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, X22, H1766), Eyepiece 10X, Objective F=300mm & F=400mm, F=200mm-300mm zoom objective, Table mount clamp, Wall mount bracket
