LED Colposcope

Quick Details
Type: Optical Endoscope & Accessories
Brand Name: HIPROVE
Model Number: HIP II
Place of Origin: Shandong, China (Mainland)
Certificate: CE ISO
Observation angle: 45°tilted
Magnification of eyepiece: 16X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=230mm & F=280mm & F=300mm
Magnification changer: 5-step: 0.4X, 0.66X, 1X, 1.5X, 2.5X
Total Magnification: 2.7X, 4.4X, 6.6X, 10X, 16.6X
Linear field: 90mm, 55mm, 37mm, 24mm, 15mm
Illumination: 10W LED light source, brightness

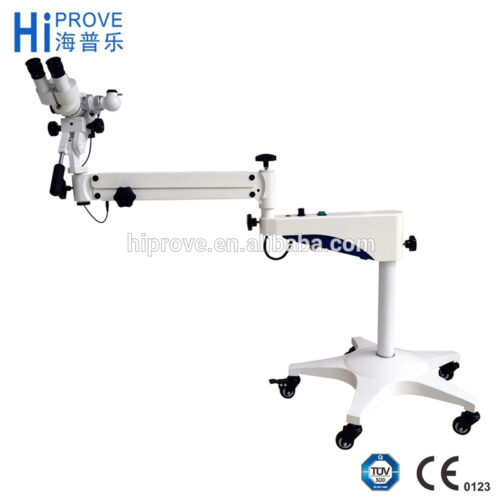

LZJ-II Series Colposcopes are precise optical instruments designed especially for the gynecologic examination and diagnosis. Due to the magnification of the instrument, the pathological changes in the vagina, which is impossibly viewed with naked eyes, can be clearly seen with the instrument. Therefore, the correctness of a diagnosis is enhanced significantly. HIP II Series Colposcopes are featured for sharp image, wide field of view, uniform illumination, adjustable brightness and easy operation. They are the essential instruments for gynecologic examination.

LZJ-II Colposcope:

Observation angle: 45°tilted
Magnification of eyepiece: 16X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=300mm
Magnification changer: 5-step: 0.4X, 0.66X, 1X, 1.5X, 2.5X
Total Magnification: 2.7X, 4.4X, 6.6X, 10X, 16.6X
Linear field: 90mm, 55mm, 37mm, 24mm, 15mm
Fine focusing distance: 20mm
Balance arm: Counterweight adjustable and can be locked
Illumination: Coaxial illumination with 10W LED light source, brightness adjustable
Illumination: >20000lux
Filter: Build-in green & blue filter
Stand: Short column fitted on the five-star base

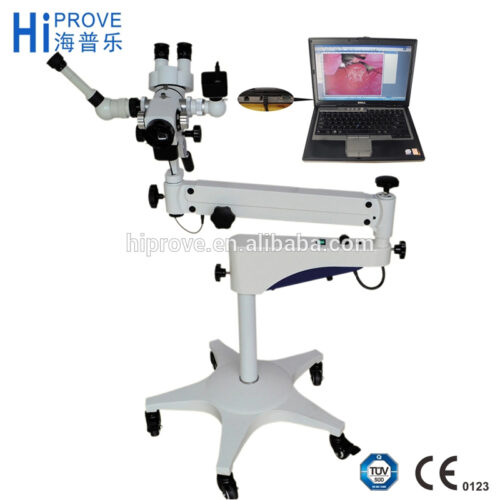

With beamsplitter, and TV adapter, C-mount 1/3″ CCD camera attachable
Power supply: AC100V-240V
Optional accessories: Demonstrator, Camera (MDCCC200, MTV-73X10, MTV-73X10H, DC-200, VGA200), Photo adapter, Monitor H1766, Objective (F=230mm & F=280mm)
